SPL HD-64
€109,00

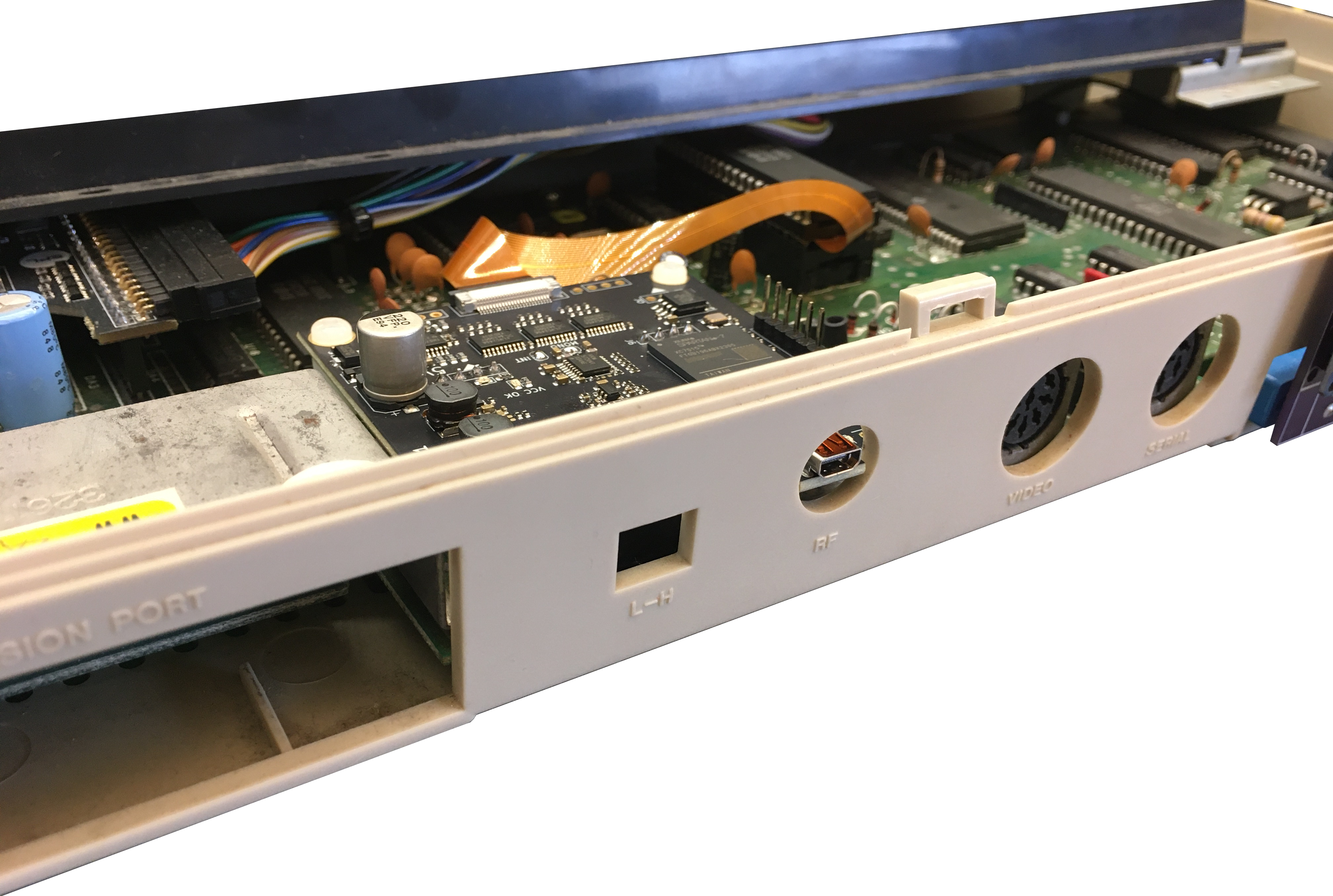

The HD-64, designed and manufactured by SPL, is a modern modulator replacement for the Commodore 64, that creates crystal clear HDMI output, by digitally creating the video signal directly from an existing VIC-II chip or Kawari.
Features:
- Replaces the stock modulator.
- Micro HDMI out provided through bv RF opening in case
- Full-HD (50 for PAL, 60 for NTSC) HDMI output with stereo audio
- < 1ms latency
- Configurable color-palette scanlines, “blur” (or “anti-aliasing”), aspect ratio, mono-stereo audio
- Analog to digital audio conversion up to two SID channels
- Automatic PAL/NTSC detection
- Compatible with all original motherboards (including shortboard)
- Shortboard version draws power from original modulator pins, longboard needs additional wire.
- Analog video still available on AV connector, both composite and S-Video
- S-Video voltage corrected to work on any standard CRT (that supports S-Video)
- Firmware updates via USB-C
- Future capabilities already beeing worked on: configurable scaling (integer scaling, overscan)
- We now also offer a 3D printed mounting bracket. You can find it here. Designed for longboards (but usable on shortboards with alternative fastening methods).
For EU customers, price listed includes applicable VAT rate
Description
The HD-64, designed and manufactured by SPL, is a modern modulator replacement for the Commodore 64, that creates crystal clear HDMI output, by digitally creating the video signal directly from an existing VIC-II chip or Kawari.
Features:
- Replaces the stock modulator.
- Micro HDMI out provided through RF opening in case
- Full-HD (50 for PAL, 60 for NTSC) HDMI output with stereo audio
- < 1ms latency
- Configurable color-palette scanlines, “blur” (or “anti-aliasing”), aspect ratio, mono-stereo audio
- Analog to digital audio conversion up to two SID channels
- Automatic PAL/NTSC detection
- Compatible with all original motherboards (including shortboard)
- Shortboard version draws power from original modulator pins, longboard needs additional wire.
- Analog video still available on AV connector, both composite and S-Video
- S-Video voltage corrected to work on any standard CRT (that supports S-Video)
- Firmware updates via USB-C
- Future capabilities already beeing worked on: configurable scaling (integer scaling, overscan)
- We now also offer a 3D printed mounting bracket. You can find it here. Designed for longboards (but usable on shortboards with alternative fastening methods).
Additional important information:
- To be able to mount the HD-64, besides removing and re-socketing your existing VIC-II or Kawari (mini) chip, you need to perform some (de)soldering of the old modulator, and placement of pinheaders in it’s place as well as closing some solder jumpers on the HD-64 board for configuration depending on the revision of your C64 motherboard.
- We now also offer a 3D printed mounting bracket. You can find it here. Designed for longboards (but usable on shortboards with alternative fastening methods).
- The HD-64 is only compatible with Commodore 64 boards. C16/Plus4 and C128 are not (and will not be) supported due to space limitations and/or different video chips.
