A/V Breakout adapter for Commodore 64
€24,95 – €27,95

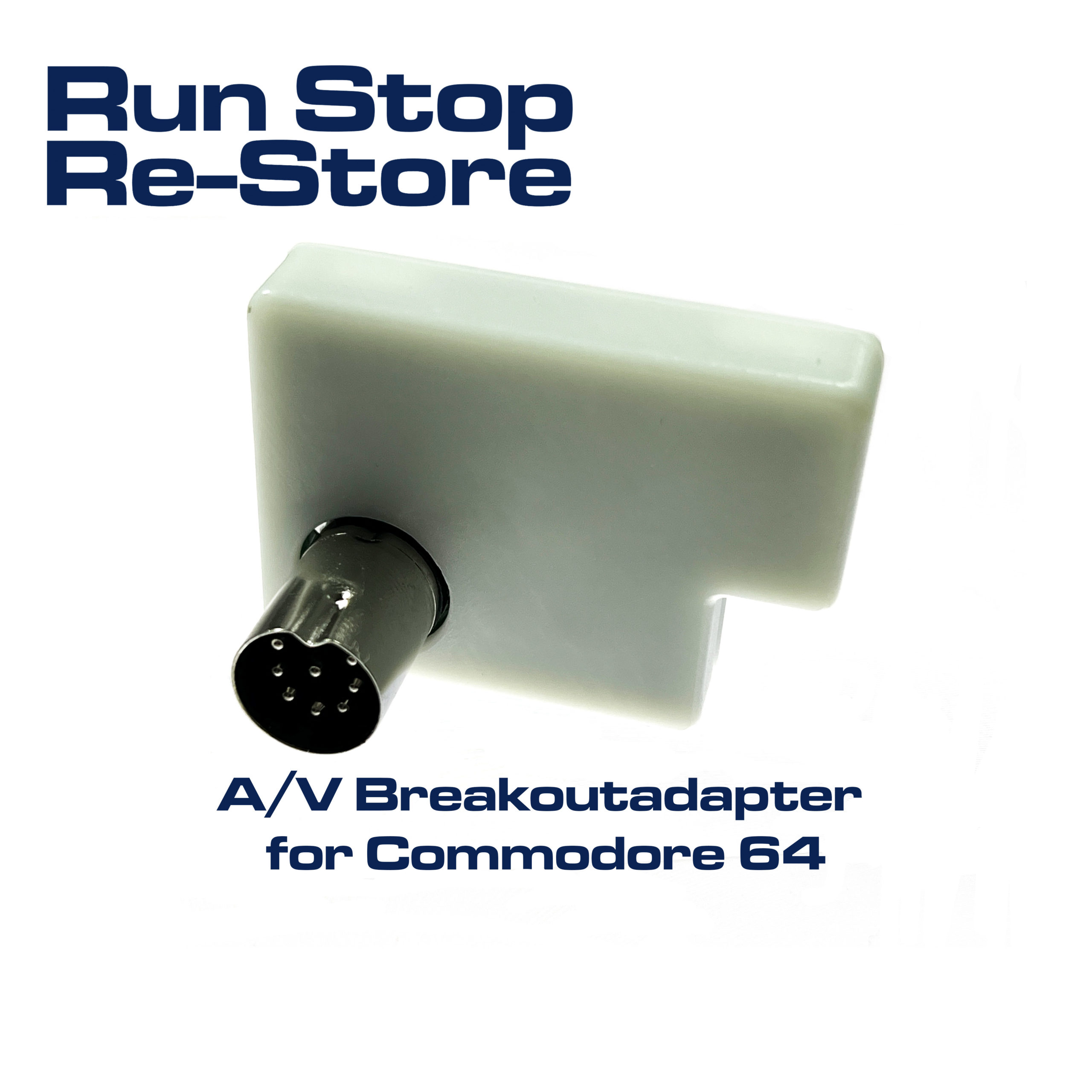

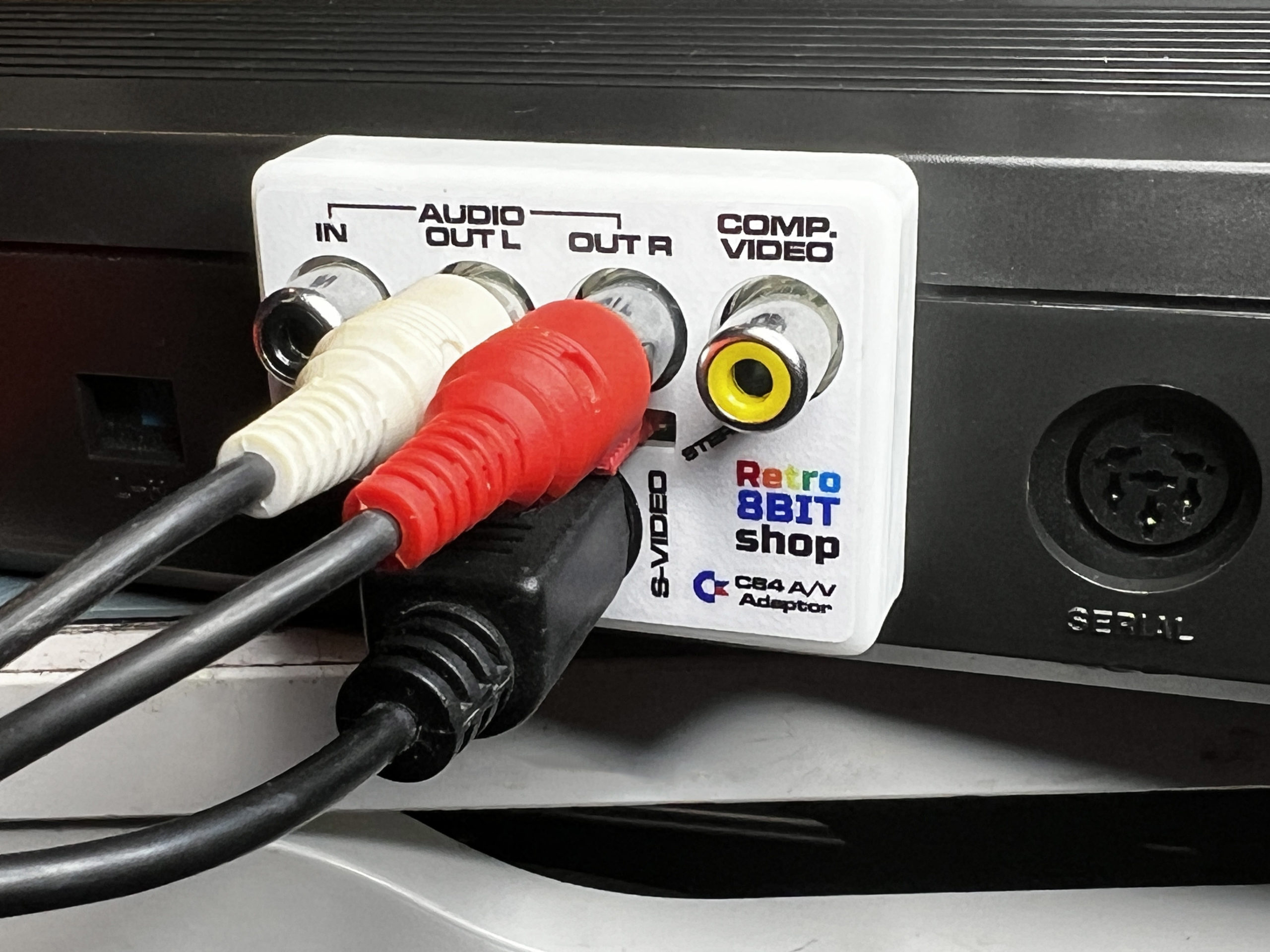

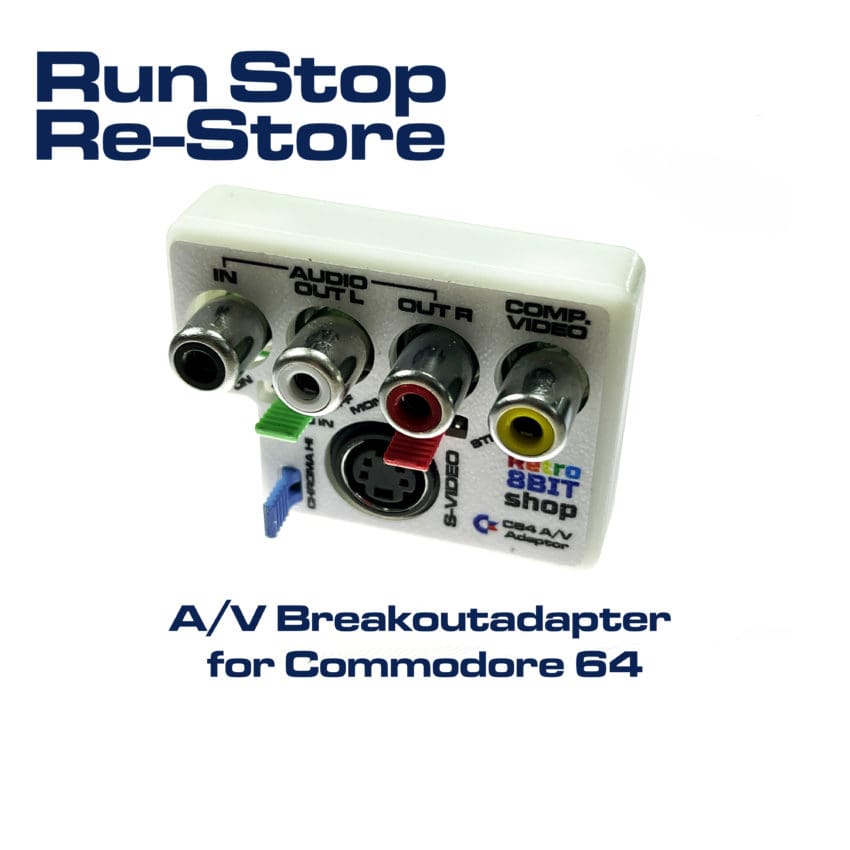

A/V Breakout adapter for the Commodore 64.
Based on the design of Sven Petersen (project available on Github: https://github.com/svenpetersen1965/C64-A-V-Adaptor)
Allow use of regular S-Video mini-din and RCA cables for Composite and (stereo) sound out/in.
Configurable mono/stereo, audio in enable/disable and chroma low/high via jumper.
Standard case color is white, other colours variations available.
Please read the extended product description below
Price listed includes applicable VAT rate
A/V Breakout adapter for the Commodore 64.
Based on the design of Sven Petersen (project available on Github: https://github.com/svenpetersen1965/C64-A-V-Adaptor)
Allow use of regular S-Video mini-din and RCA cables for Composite and (stereo) sound out/in.
Configurable mono/stereo, audio in enable/disable and chroma low/high via jumper.
For stereo audio use, you need to route the output of the 2nd audio channel to pin 7 on the internal DIN8 connector.

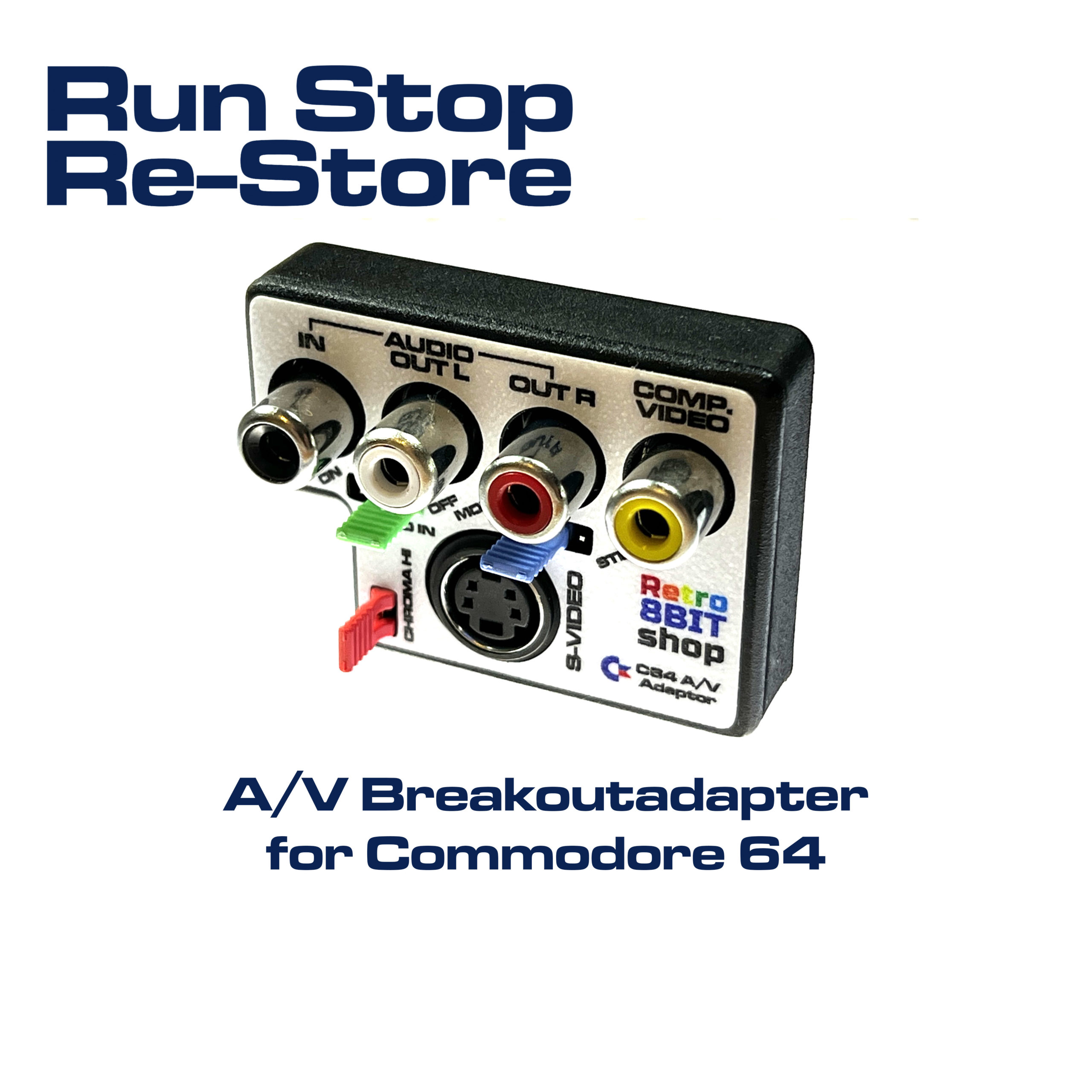

Standard case color is white, blue and black are spray paint options, other colours on request. Â Adds a few days to processing time.
Sticker will always be white as shown in pictures.
Jumper settings:
Mono/Stereo : either runs the default audio channel to both RCA outputs for dual mono, or inserts pin 7 on the right channel for stereo SID configurations.
Chroma Hi: when jumper is closed, the chroma signal will be of the original Commodore designed strength, which might cause checker boarding or other graphical distortions when used with modern screens. When open, a 330Ohm resistor dampens this signal to be more in line with true S-Video specifications, reducing graphical distortions.
Audio In On/Off: when set to off, this shorts the audio input to ground, reducing noise on the audio output. When On, the black RCA input routes to the sound input of the SID chip allowing to record external sources.
Price listed includes applicable VAT rate
Shipping Countries: Netherlands, Germany, Luxembourg, Austria, Sweden, Denmark, Spain, Belgium, France, Italy, Malta, Romania, Slovenia, Bulgaria, Estonia, Greece, Latvia, Poland, San Marino, Greenland, Lithuania, Portugal, Slovakia, Croatia, Faroe Islands, Hungary, Cyprus, Czech Republic, Finland, Ireland, Andorra, Norway, United Kingdom (UK), Bosnia and Herzegovina, Switzerland, Moldova, Turkey, Albania, Montenegro, Ukraine, Belarus, Serbia, Vatican
Ready to ship in 3-5 business days from Netherlands
Shipping Policy
All shipments typically sent within 3-5 business days if products are in stock.
Using the Track and Trace shipment option is highly recommended.
Assembled Sixtyclones will only be sent with T&T and insurance.
IMPORTANT! While we do offer the option of cheaper untracked shipping to make sure the purchase of smaller sized items stays reasonable, due to the current situation with overloaded postal services due to COVID-19, there is a higher risk of serious delays or even damage and loss completely outside of our control. Our advice is to only use this shipping method for smaller items with acceptable risk to delay or loss. Inquiries about shipments without tracking will not be possible (as there is no information to give). By choosing untracked shipping buyer accepts all risks involved and no claims will be accepted, nor will any restitution of costs be granted by Run Stop Re-Store in the case of a lost shipment.
Buyer is responsible for any import VAT and customs duties on import outside of the European Union. Tracked door to door shipments only available to the following countries : Australia, Austria, Belgium, Belarus, Brazil, Canada, Cyprus, Denmark, Estonia, Finland France, Germany, Greece,, Hong Kong Hungary, Iceland, Ireland, Indonesa, Israël, Italy, Japan, Croatia, Latvia, Lebanon, Lithuania, Luxemburg, Malasia, Malta, New-Zealand, Norway, Poland, Portugal, Russia, Saudi Arabia, Serbia, Singapore, Slovenia, Slovakia, South Korea, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States.
Refund Policy
Refunds only after product is returned in good order or order cancelled before shipping.
Return shipping costs are for receiver, unless there is an error or quality issue on our part.
On arrival please take photo of unopened package if you suspect contents are damaged or tampered with. Damaged packages have to be claimed immediately after receiving.
Additional information
| Case color | White (standard), Black (+EUR2), Blue (+EUR2), Red (+EUR2), Gold (+EUR2), Silver (+EUR2), Breadbin brown (+EUR3) |
|---|
